HIGH MAST by AS INFRA ENGINEERS

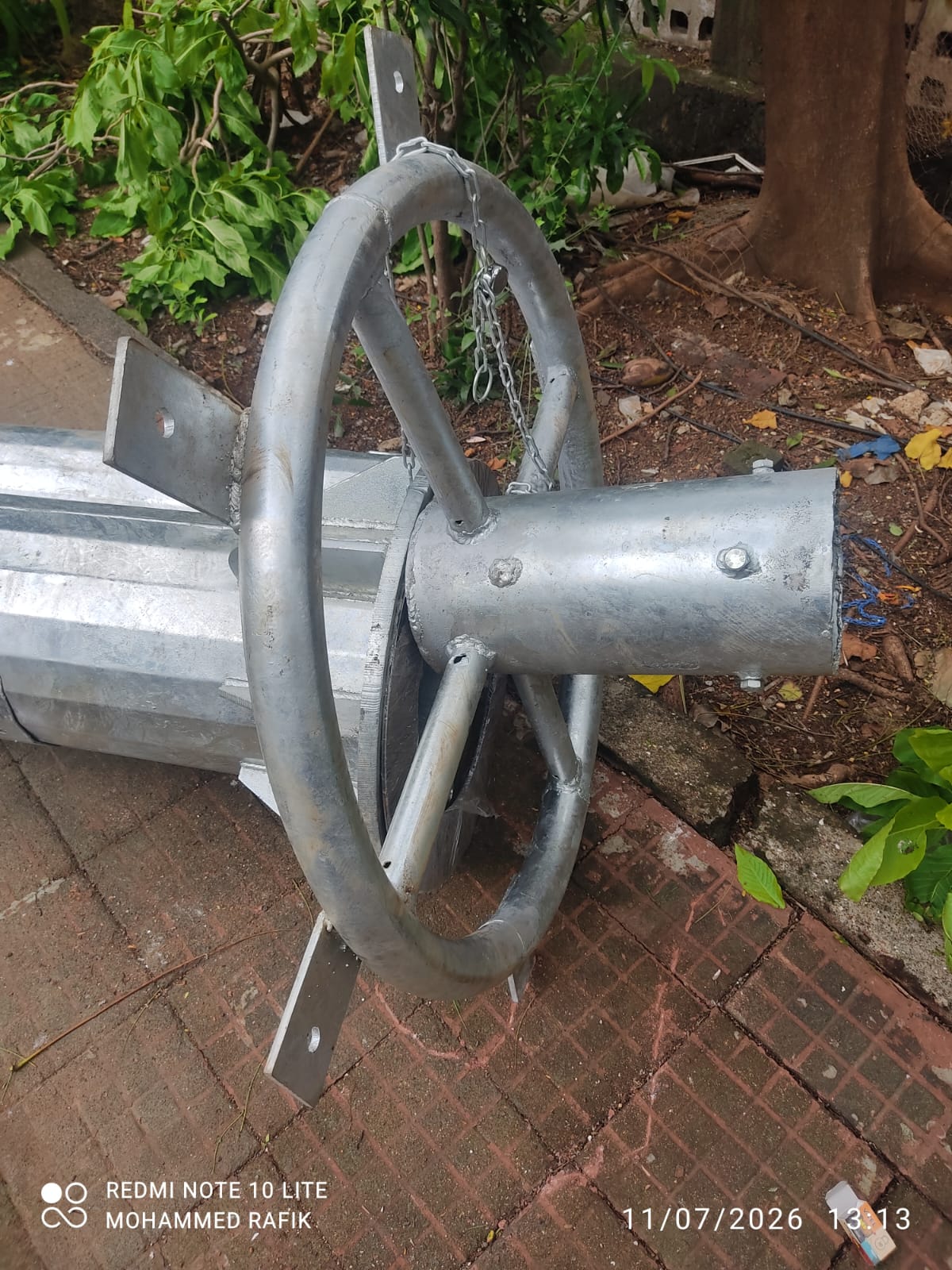

High Mast Raising & Lowering Lantern Carriage

Share with
Share this on :

Description

Product details

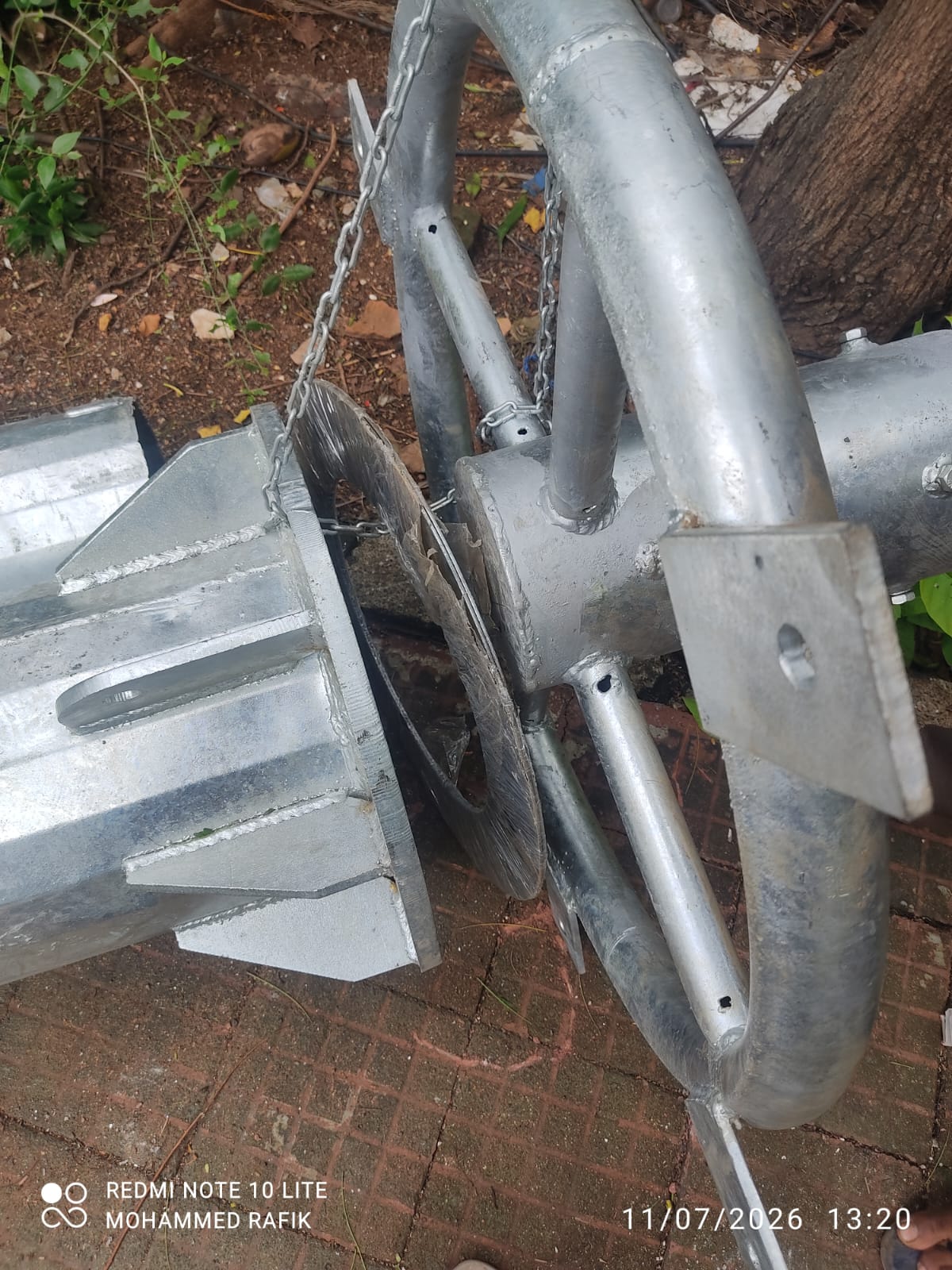

High Mast Raising & Lowering Lantern Carriage The High Mast Raising & Lowering Lantern Carriage is an essential component of a high mast lighting system, designed to support multiple LED floodlights and provide convenient access for maintenance. The carriage operates with the high mast raising and lowering mechanism, allowing the lighting assembly to be safely brought down from height when required. Manufactured for heavy-duty outdoor applications, the assembly is designed with a robust structural arrangement and corrosion-resistant galvanized finish for reliable performance in demanding environments. 1) What Is a High Mast Lantern Carriage? A lantern carriage is the movable lighting assembly mounted at the top of a high mast pole. It supports multiple high-power LED floodlights and is connected to the mast's raising and lowering mechanism. Its primary functions are: Supporting multiple LED floodlights Maintaining the lighting fixtures securely at the top of the mast Allowing the lighting assembly to be lowered for maintenance Providing a strong connection between the lighting fixtures and the mast Enabling convenient inspection and servicing of floodlights The carriage shown in the supplied image features a robust circular support arrangement with multiple structural members and mounting plates. 2) Raising & Lowering Mechanism The lantern carriage is designed to work with a motorized raising and lowering system installed within the high mast. The system can incorporate: Stainless steel wire rope Winch assembly Pulley system Lantern carriage assembly Safety locking mechanism These components work together to move the lighting carriage between its operating position at the top of the mast and its maintenance position at ground level. This arrangement significantly simplifies routine floodlight maintenance and inspection. 3) Structural Construction The lantern carriage requires sufficient structural strength to support the combined weight of multiple LED floodlights and associated accessories. The assembly shown in the image includes: Heavy-duty circular support members Central cylindrical mounting section Structural support arms Mounting plates Welded structural joints Chain/support arrangement Galvanized steel construction The components are fabricated and assembled to provide a stable support structure for the lighting equipment. 4) High-Quality Steel Fabrication The high mast specification identifies structural steel such as IS 2062 Grade / BS EN 10025 S355 for high mast applications. Important fabrication considerations include: Accurate component fabrication Proper alignment of support members Strong welded joints Accurate mounting arrangement Dimensional inspection Proper surface preparation before galvanization The available specification also identifies Automatic Submerged Arc Welding (SAW) for enhanced structural integrity in high mast fabrication. 5) Hot-Dip Galvanized Finish The lantern carriage is exposed to outdoor weather conditions and therefore requires effective corrosion protection. The high mast specification specifies Hot-Dip Galvanization (HDG) according to IS 2629 / ISO 1461, with an indicative zinc coating range of 80–100 microns. The galvanized finish helps protect the assembly against: Rain and moisture Humidity Atmospheric corrosion Outdoor weather exposure Coastal environmental conditions This makes the carriage suitable for demanding outdoor lighting applications. 6) Floodlight Mounting Arrangement The lantern carriage is designed to accommodate multiple high-power LED floodlights according to the project lighting requirement. The mounting arrangement should provide: Secure floodlight support Stable positioning of lighting fixtures Proper load distribution Compatibility with the high mast carriage Easy access during maintenance The exact number and configuration of floodlights depend on the individual project requirements. 7) Maintenance-Friendly Design One of the major advantages of a raising and lowering lantern carriage is simplified maintenance. Instead of accessing floodlights at the top of an 18M, 20M or higher mast, the carriage can be lowered using the mast's mechanical system. This allows maintenance teams to perform activities such as: LED floodlight inspection Floodlight replacement Electrical connection checking Cleaning Cable inspection General servicing The raising and lowering mechanism therefore improves maintenance accessibility and reduces the need for working at extreme heights. 8) Safety and Stability The lantern carriage must remain securely positioned during normal operation at the top of the high mast. The high mast system can incorporate a safety locking mechanism to secure the carriage in its operating position. The available specification also identifies a pulley system and wire-rope arrangement as components of the raising/lowering system. Proper alignment and secure connection of the carriage, wire rope, pulley and winch system are important for reliable operation. 9) Applications High Mast Raising & Lowering Lantern Carriages are suitable for high mast lighting systems used in: Commercial developments Infrastructure projects Construction sites Large parking areas Industrial premises Sports grounds Cricket stadiums Football grounds Hockey fields Athletic tracks Airports Ports Large outdoor venues They are particularly useful wherever multiple floodlights need to be installed at significant height while maintaining practical access for servicing. 10) Key Product Specifications Product: High Mast Raising & Lowering Lantern Carriage Application: High Mast Lighting System Function: Raising, lowering and supporting multiple floodlights Construction: Heavy-duty structural steel Steel Reference: IS 2062 Grade / BS EN 10025 S355 Finish: Hot-Dip Galvanized Galvanization Reference: IS 2629 / ISO 1461 Indicative Zinc Coating: 80–100 Microns Mechanism: Motorized Raising & Lowering System Wire Rope: Stainless Steel Wire Rope Drive System: Winch Assembly Guidance: Pulley System Safety: Safety Locking Mechanism Lighting Support: Multiple High-Power LED Floodlights Fabrication: Precision welded structural assembly Application: High Mast Lighting & Large-Area Illumination The above specifications are based on the supplied high mast specification; exact carriage dimensions, weight, floodlight capacity and mounting-hole configuration should be confirmed from the project-specific drawing or fabrication details. Final Takeaway The High Mast Raising & Lowering Lantern Carriage is a critical component of a high mast lighting system. Its robust structural construction, galvanized finish, floodlight mounting arrangement, and compatibility with the winch, pulley and wire-rope mechanism make it suitable for reliable large-area lighting applications. Manufactured by AS INFRA ENGINEERS AND CONTRACTORS Product: High Mast Raising & Lowering Lantern Carriage Application: High Mast Lighting System Finish: Hot-Dip Galvanized Suitable For: Multiple LED Floodlights & Large-Area Illumination
