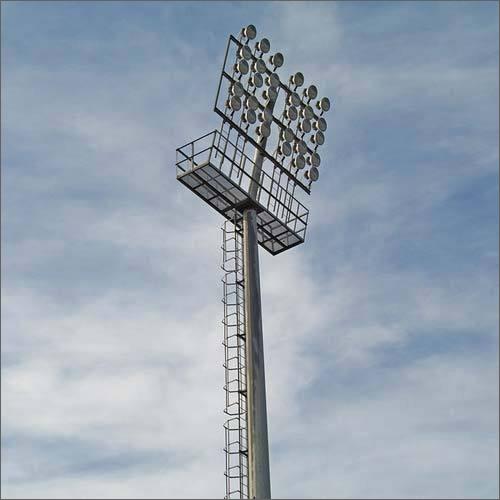

Stadium Highmast by AS INFRA ENGINEERS

Stadium Highmast

Share with
Share this on :

Description

Product details

Stadium High Mast Pole – Specifications & Quality Key Specifications * Height: Available from 20 Meter to 45 Meter (custom heights available as per project requirements). * Manufactured from high tensile structural steel (IS 2062 Grade / BS EN 10025 S355) for maximum strength and durability. * Polygonal tapered design engineered for superior structural stability and high wind resistance. * Wall Thickness: 4 mm to 12 mm, depending on pole height and structural design. * Designed to withstand high wind loads in accordance with IS 875 standards. * Equipped with a motorized raising and lowering system for easy maintenance of floodlights. * Heavy-duty base plate, high-strength anchor bolts, and RCC foundation design for secure installation. * Precision fabricated using Automatic Submerged Arc Welding (SAW) for enhanced structural integrity. * Fitted with a lantern carriage assembly capable of supporting multiple high-power LED floodlights. * Includes stainless steel wire rope, double drum winch assembly, pulley system, and safety locking mechanism. * Suitable for cricket stadiums, football grounds, hockey fields, sports complexes, athletic tracks, airports, ports, and large outdoor venues. Quality Features * Manufactured using premium quality certified steel under strict quality control procedures. * Hot-Dip Galvanized (HDG) as per IS 2629 / ISO 1461 with 80–100 microns zinc coating for superior corrosion protection. * Excellent resistance to rust, moisture, UV exposure, coastal environments, and extreme weather conditions. * High load-bearing capacity with excellent stability under dynamic wind conditions. * Precision-engineered fabrication ensuring accurate dimensions, superior weld quality, and smooth finish. * Factory-tested for weld quality, galvanizing thickness, dimensional accuracy, structural strength, and raising/lowering mechanism. * Low maintenance with a long-lasting galvanized finish and dependable performance. * Designed for continuous operation with reliable illumination and safe maintenance access. * Manufactured in compliance with relevant Indian and International Standards for safety and performance. * Provides long service life, maximum reliability, and efficient lighting performance for professional sports and large-area illumination applications.
